Examples

The examples folder has runnable demos, each a single file. Run any of them with nim c -r examples/<name>.nim, or run the showcase with nimble examples.

Three of them are complete little games. snake.nim has a grid, steering by arrows or WASD, a score, and a restart after you lose, and pong.nim plays against a simple AI, moving the left paddle with W and S or the arrow keys.

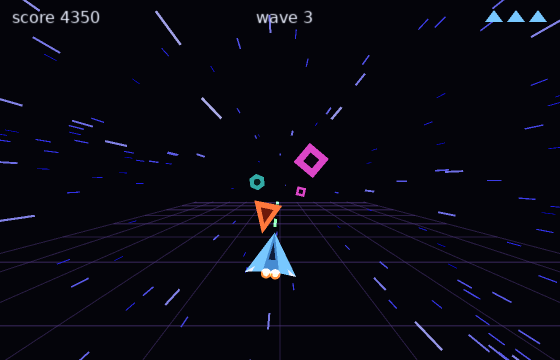

starfield.nim is a fake-3D shmup. Enemies dive at you over a perspective ground grid, growing as they close in; steer with the arrow keys or the mouse, hold space or the left button to fire, and survive waves that keep getting faster and meaner. Between waves the stars stretch into a warp jump, the screen shakes when you take a hit, and the run keeps score across three lives, restarting on R. The whole 3D effect is one divide: a point at depth z lands at center + position * focal / z, the same projection the background stars use.

The rest, in the order you might explore them:

• all.nim is a showcase that touches most of what nim2d does: shapes, an image, a canvas, text and input.
• bounce.nim drops balls under gravity that bounce off the walls. Click to spawn one, space for a burst, c to clear.
• particles.nim is a particle fountain that follows the mouse and uses additive blending for the glow. Click for a firework.
• clock.nim draws an analog clock from the system time, with ticks, hands and a digital readout.
• transforms.nim shows the transform stack with orbiting, self-spinning satellites and a pulsing row of squares.
• camera.nim flies a glowing orb across a world wider than the window and flips between two cameras, a close follow view and a pulled-back tilted overview, blending smoothly between them on each switch. It pins gate labels with toScreen, drops a ping at the world point under the cursor with toWorld, and uses import nim2d/camera.
• collide.nim is a live reference for the collide module, a panel for each test that reacts to the mouse, so you can watch every overlap, point, segment and resolution check light up as a probe shape moves against a fixed one. It uses import nim2d/collide.
• tween.nim is a chart of every easing curve in the tween module, a cell per curve with a dot tracing along it on a shared clock, rows for the families and columns for the in, out and in-out variants, with a ball up top riding one curve at a time through a VecTween. It uses import nim2d/tween.
• schedule.nim drives a small clockwork from a scheduler: a metronome on every pulses a ring, each beat queues an offbeat with after, every fourth beat runs a during sweep, and a feed lists the callbacks as they fire. Click to queue a burst, space cancels the metronome, C clears every timer. It uses import nim2d/schedule.
• scene.nim moves between a title, a play field and a pause overlay with a scene manager, showing switch between screens and push/pop for the pause, which draws over the still-visible game because the stack draws from the bottom up. It uses import nim2d/scene.
• animation.nim walks a warrior around a field of grass with WASD or the arrow keys, playing a sprite-sheet walk cycle for whichever way he faces and resting on the standing frame when he stops, over a ground of randomly scattered grass tiles. It uses import nim2d/animation.
• tilemap.nim loads a cave level made in LDtk, draws its tiles scaled up, and walks a square around it that jumps and bumps into the walls marked on the level's IntGrid. It uses import nim2d/tilemap and lives in its own folder with the .ldtk file and tileset. Move with A/D or the arrows, jump with Space.
• platformer.nim, in the same folder, loads the LDtk "typical 2D platformer" sample. Its four levels sit next to each other in world space, joined at the ladders, so the example draws them all at their world positions and a camera from the camera module follows the player while staying inside the part it is in, bringing the next part into view as you cross into it. The player starts at the Player entity, the mobs patrol between the waypoints on their patrol field, and touching a mob or falling out of a level sends you back to the start. Chests and doors are drawn as markers, and the collision grid has dirt and stone as solid with a ladder value you climb with W or S. It uses import nim2d/tilemap, import nim2d/collide and import nim2d/camera.
• input.nim shows held-key polling, mouse position and buttons, the wheel, and text input.
• sprites.nim shows a sprite batch, a colored mesh and a quad crop.
• shader.nim runs a fragment shader over a fullscreen rectangle for an animated plasma. The shader is authored in GLSL (plasma.frag) and compiled offline to SPIR-V and MSL blobs, so it runs on both Metal and Vulkan.
• noise.nim scrolls Perlin noise across the window and shows a concave star filled by ear clipping and a Bezier curve.
• data.nim has no window and prints base64, hex, hashes, compression sizes and a packed value, so it doubles as a quick check.
• imagedata.nim builds a small texture on the CPU pixel by pixel, draws it scaled up, and saves it to a PNG when you press S.
• filesystem.nim keeps a high-score table in the save directory, appending a new score on each press and reading it back.
• audio.nim plays a looping music track and a sound effect, with keys for volume, stereo panning and pitch.
• system.nim shows the platform and power info and drives the window and cursor from the keyboard: fullscreen, resize, minimize, relative mouse mode, grab, clipboard and a message box.
• physics.nim drops boxes and balls that fall, collide and stack on Box2D, click or space to add more. It needs Box2D installed and is built with nim c -r examples/physics.nim.
• threads.nim runs a prime count on a background thread and reports its progress over a channel, while a spinner keeps turning at full frame rate to show the main loop never blocks.
• touch.nim draws a dot under each finger and ripples out where you press, using the touch callbacks and polling. On a desktop the trackpad usually acts as a touch device.
• polish.nim tours the graphics extras: nearest and linear filtering, texture wrap, mipmaps, point size, round joins on thick lines, supersampled anti-aliasing (aa = 2) and stencil masking (stencil = true).
• bitmapfont.nim builds a small pixel font in memory and draws scaled, tinted text with it, showing newImageFont.

These are a good place to see the API used in context. snake and pong show input and game state, starfield shows held-key polling and faking depth with a projection, particles shows blend modes, clock shows building shapes from lines and trigonometry, and all shows images, canvases and text together.

There is one more program of this kind in the repository: tools/docshots.nim renders every screenshot in these docs by drawing scenes into a canvas, reading the pixels back with newImageData, and saving PNGs. If you want to capture images of your own game, that is the file to crib from.
